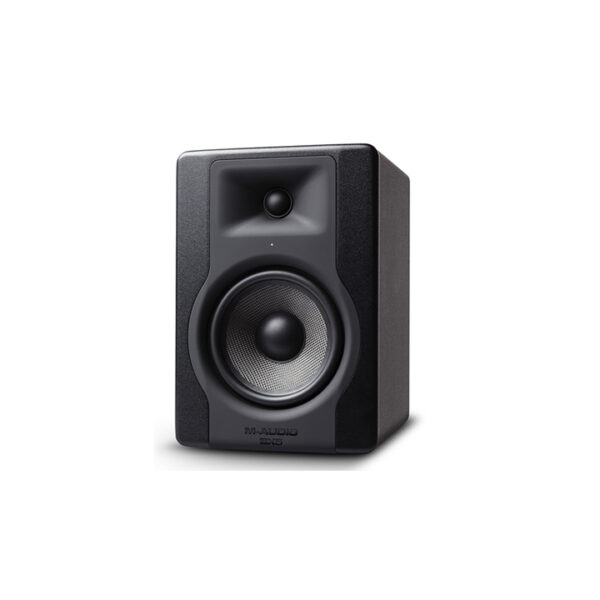

M-Audio BX5 D3 5″ Monitor

Brand: M-audio


100-watt Active Studio Monitor with 5″ LF Driver and 1″ HF Driver (each)

M-Audio BX5 D3 Features:

  • 100W active studio monitor with 5″ military-grade Kevlar low-frequency driver and 1″ silk dome tweeter
  • Bi-amplified design delivers a sound that’s both powerful and precise
  • Custom waveguide ensures accurate dispersion for an incredibly tight soundstage
  • Optimized rear-mounted port produces defined low-end response with bass extension down to 52Hz
  • Acoustic Space Control tailors your monitor to your mix space
  • Volume control for dialing in the perfect playback level
  • Balanced combo input allows for flexible installation
  • Front-panel LED shines brightly when the speaker is positioned at an ideal angle

Tech Specs

  • Powered:Yes
  • Power Configuration:Bi-amped
  • LF Driver Size:5″ woofer
  • LF Driver Type:Kevlar with rubber surround
  • HF Driver Size:1″ tweeter
  • HF Driver Type:Silk dome
  • LF Driver Power Amp:60W
  • HF Driver Power Amp:40W
  • Total Power:100W Class AB
  • Frequency Response:52Hz-35kHz
  • Crossover Frequency:2.5kHz
  • Maximum Peak SPL:110 dB SPL
  • Input Types:1 x 1/4″ TRS, 1 x XLR
  • Features:Acoustic space bass response switch
  • Enclosure Type:Rear Ported
  • Enclosure Material:Vinyl laminated MDF
  • Height:10″
  • Width:6.9″
  • Depth:7.8″
  • Weight:12.3 lbs.
  • Manufacturer Part Number:BX5 D3
