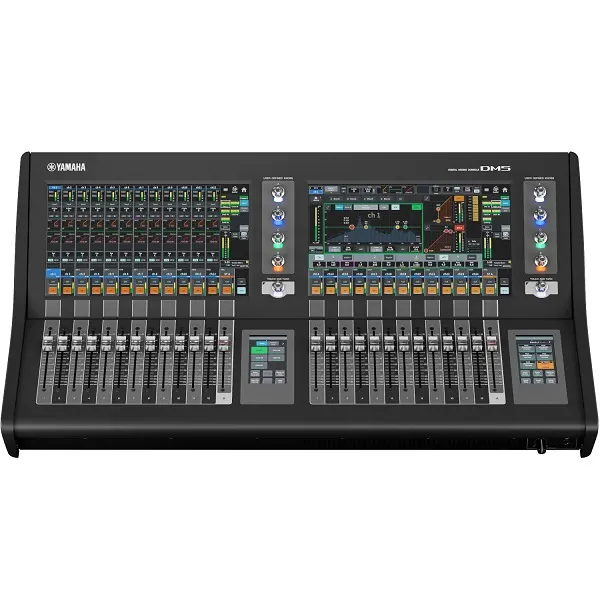

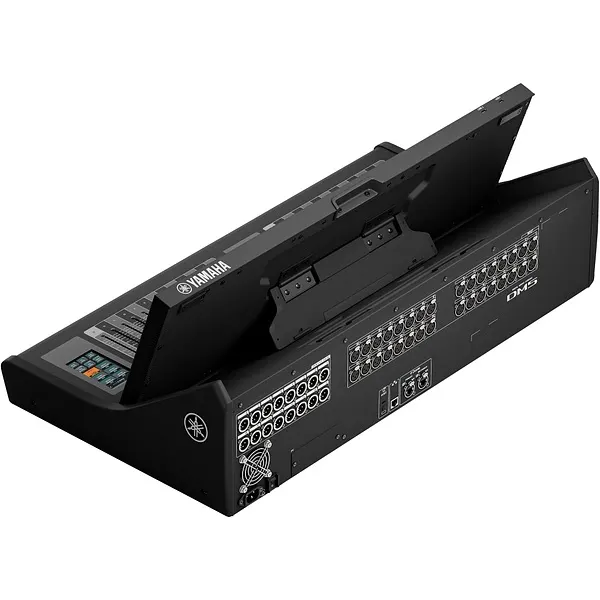

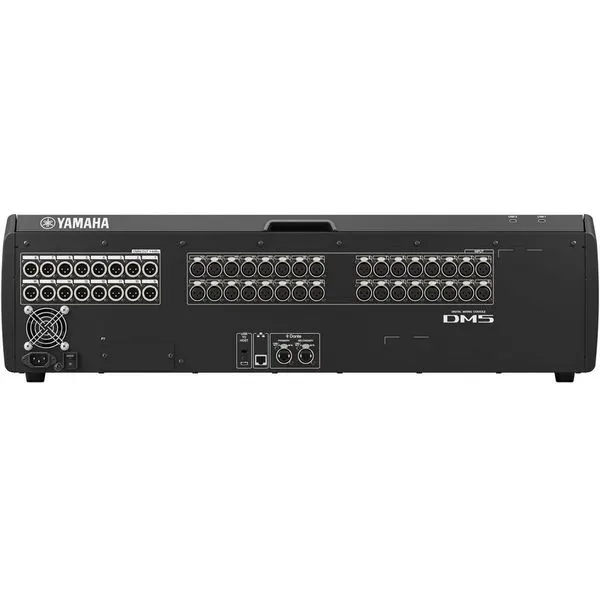

Yamaha DM5 60-channel Digital Mixer
USD 12,000.00
60-channel, Dual-bay Digital Mixer with 32x24 Analog I/O, 26 Faders, 2 x 13.3" and 2 x 4.3" Touchscreens, 64x64 Dante Interface, and 18x18 USB-C to Host
Product Information
Description
Yamaha DM5 60-channel Digital Mixer
60-channel, Dual-bay Digital Mixer with 32x24 Analog I/O, 26 Faders, 2 x 13.3" and 2 x 4.3" Touchscreens, 64x64 Dante Interface, and 18x18 USB-C to HostYamaha’s DM series has set a standard of excellence for modern digital mixers. Now, the DM5 raises the performance bar while lowering the admission price for this advanced technology. Built on the powerful DM7 engine, the DM5 is a professional 60-channel, dual-bay digital console optimized for live sound, broadcast, corporate events, and theater productions. Offering intuitive control and efficient workflows, this mixer delivers 96kHz audio, flagship-level processing, advanced effects, and compatibility with the DM Series editor for seamless show file sharing.
Rivage-inspired user experience
The DM5 boasts a smart, modern interface trickled down from Yamaha's top-of-the-line Rivage PM series. Although this console delivers a warm, vintage-tinged analog sound, its user experience is digital all the way. The DM5 employs an intuitive combination of on-screen and physical controls, with increased visibility on your selected channel. This smartly designed digital mixer puts what you need exactly where — and when — you need it, such as offering time-based metering and information on dynamics, and putting fully customizable signal flow and sequential patching at your fingertips.
Streamlined, adaptive operation
The Yamaha DM5 comes loaded with AI assist features that seamlessly adapt its functions to your preferences and workflow. Moreover, this digital mixer includes a split mode designed to assist a single engineer in mixing monitors and front of house, or FOH and broadcast, with ease. With all the DM5’s tools at your disposal, you'll be able to craft a rock-solid mix — even if your soundcheck was cut short.
Yamaha DM5 Features:
- Professional 60-ch., dual-bay digital console
- Acclaimed Yamaha sound quality with 96kHz sample rate
- 2 x 13.3-in. touchscreens and 2 x 4.3-in. utility displays
- 26 faders (12 + master x 2 bays)
- Mixable channels: 60 inputs
- Built on the DM7 series engine
- 16 FX rack; 1 PY slot
- 64 x 64 Dante interface
- 18 x 18 USB-C to Host
- Includes an AC power cable, a dust cover, cable hooks, and the owner's manual
Tech Specs
- Type:Digital Mixer
- Channels:60
- Inputs - Mic Preamps:32 x XLR
- Outputs - Main:16 x XLR
- Inputs - Digital:2 x EtherCon (Dante)
- Busses/Groups:24 x mix, 1 x stereo, 12 x matrix, 12 x DCA
- Data I/O:1 x Ethernet (network)
- Headphones:1 x 1/4"
- USB:3 x USB-C
- Computer Connectivity:USB (18x18), Ethernet
- I/O Expansion Slots:1 x Slots Available
- Faders:26 Motorized
- A/D Resolution:96kHz
- Transport Controls:Yes
- DAW Control:Yes
- Screen:2 x 13.3, 2 x 4.3" Touchscreens
- Power Source:Standard IEC AC Cable
- Manufacturer Part Number:DM5
