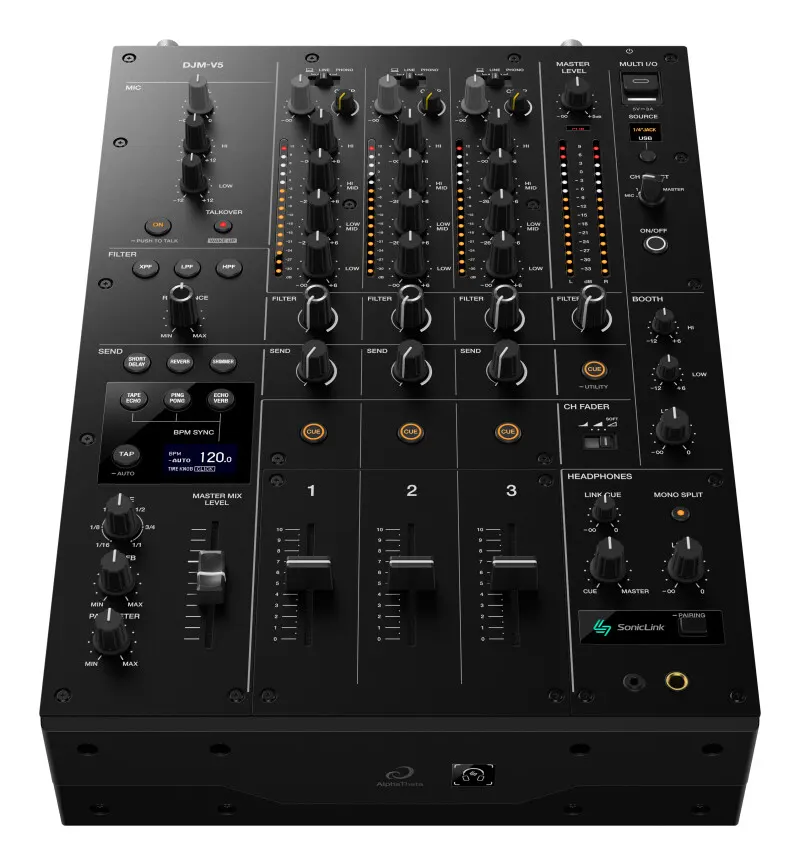

AlphaTheta DJM-V5 3-channel DJ Mixer

AlphaTheta DJM-V5 Features:

• Galvanizing 3-ch. mixer packs the power and punch of the DJM-V10 into an uncompromising unit
• Requires only 70% of its 6-ch. sibling’s footprint
• 6 onboard Send FX include BPM-syncable Tape Echo, Ping Pont, and Echo Verb options, alongside Reverb, Shimmer, and Short Delay, for complete space-shaping control
• 3 built-in filters comprise lowpass, highpass, and crosspass options for expressive, detailed control
• Per-channel 4-band EQ, Compressor, Filter, Trim, and Send FX parameters support sound shaping to suit any set, with pinpoint accuracy and satisfying gig-grade tactility
• 60mm per-channel upfaders ensure unwavering precision
• 3 selectable Mix Curve fader modes include classic steep and gradual curves, as well as the new Soft Mix Curve for HF attenuation
• SonicLink compatibility and front-mounted headphone touchpoint mean ultra-low-latency monitoring with wireless playback
• Pro DJ Link network port guarantees lock-step synchronization and information exchange with compatible DJ players
• Flexible audio-auditioning tools include Link Cue — a way to browse and preview tracks without loading them — and a waveform-touch feature to peek ahead in your current track
• Multi I/O USB-C port digitally sends and returns audio and Sync data to multiple compatible devices, faithfully preserving all fidelity and transformations before audio exits the DAC
• Rear-mounted USB-C port means effortless integration with rekordbox and Serato DJ Pro for Windows or Mac devices, including DVS support
• Selectable Mono/Split mixing, 2-band booth EQ, and dedicated outputs for Recording (stereo RCA pair), Master (3-pin XLR stereo pair), and Booth (balanced 1/4-in. pair) let you mix your way

Tech Specs

• Model:DJM-V5
• Channels:3+Mic
• Audio Interface:32-bit/96kHz
• Pads/Triggers:4 x Cue Buttons
• Signal Processing:DSP
• Effects:Short Delay, Reverb, Shimmer, Tape Echo, PingPong, Echo-Verb

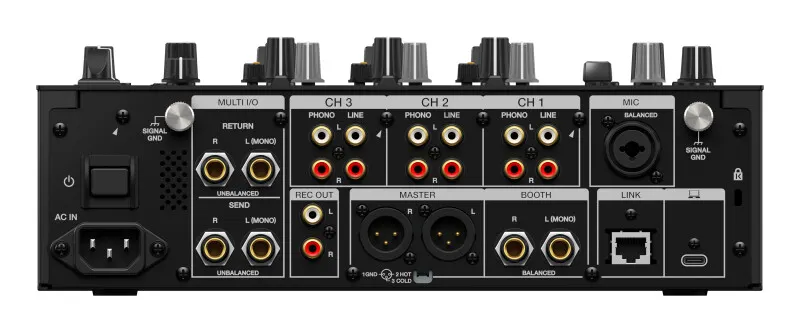

• Analog Inputs:1 x XLR-1/4" Combo (mic), 3 x Dual RCA Stereo, 3 x Dual RCA Phono
• Analog Outputs:2 x XLR (master: L, R), 1 x Dual RCA Stereo (rec), 2 x 1/4" (booth: L/mono, R)
• Headphones:1 x 1/4" TRS (top/front), 1 x 1/8" TRS (top/front), Sonicchink Wireless (2.4GHz)
• USB:1 x USB-C (rear, host), 1 x USB-C (top, multi I/O)
• Other I/O:1 x RJ-45 (link), 2 x 1/4" (return), 2 x 1/4" (send)
• Faders:3 x 60mm Channel Level Faders, 1 x 60mm Master Level Fader
• EQs:4-band EQ
• Compatibility:Serato DJ Pro, Rekordbox
• Power Source:Standard IEC AC Input
• Height:4.25"
• Width:11.89"
• Depth:17.22"
• Weight:17.64 lbs
• Manufacturer Part Number:DJM-V5
