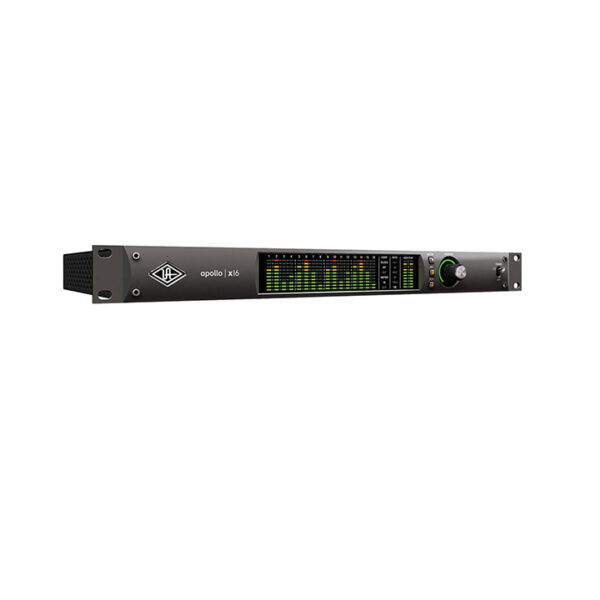

Universal Audio Apollo x16 Heritage Edition 18 x 20 Thunderbolt 3 Audio Interface with UAD DSP
18-in/20-out, 24-bit/192kHz, Thunderbolt 3 Audio Interface with Immersive Audio Support, LUNA Compatibility, Premium Plug-in Suite, and Realtime Analog Classics Plus Plug-in Package – Mac/PC AAX 64, VST, AU, RTAS
Elite-class AD/DA conversion offers ultra-pristine sound
Apollos have always sounded great, but the Apollo x16’s AD/DA conversion takes it to the next level. When they were designing the latest generation of Apollos, UA engineers auditioned the latest leading-edge AD/DA technology, ultimately pairing elite-class 24-bit/192kHz converters with overhauled analog circuitry. The result is an ultra-pristine signal path with 133dB dynamic range and –129dB THD+N. Beyond that, Dual Crystal clocking supplies a low-jitter environment for pure, artifact-free recording and solid stereo imaging. Dive in, and you’ll hear for it yourself — the Apollo x16’s AD/DA rivals any high-end standalone converter on the market.
ensational plug-in bundle included!
UAD Powered Plug-ins have earned their reputation for being some of the most accurate emulations of analog audio equipment ever created. The astonishing processing power of the UAD platform is what makes these plug-ins sound so great. You simply can’t get the depth, color, and character these plug-ins have without devoting huge CPU resources to them. Best of all, Apollo x16 lets you record your audio through UAD plug-ins in real time with sub-2ms latency. When you buy the Apollo x16 Heritage Edition, you’ll receive a premium suite of 10 award-winning plug-in titles:
UA 1176 Collection with three unique versions: Rev A, Rev E, and AE
Teletronix LA2A Classic Leveler Collection of three historic versions of the revered electro-optical tube processor
Pultec Passive EQ Collection provides access to three historical and highly coveted revisions in the Pultec product line
Fairchild Tube Limiter Collection includes both the Fairchild 660 and 670 based on an accurate circuit models of Ocean Way Studios’ “golden-reference” units.
UA 610 Tube Preamp & EQ Collection including the storied Wally Heider “Green Board,” used to record Neil Young, Ray Charles, Elvis Presley and Jimi Hendrix
Teletronix LA-3A Audio Leveler Legendary solid-state electro-optical compressor/leveler
Helios Type 69 Preamp and EQ Collection from the console at the center of hundreds of iconic albums from rock’s “Golden Age” including Led Zeppelin, The Beatles, Jimi Hendrix, Pink Floyd, Bob Marley, David Bowie, Black Sabbath and AC/DC.
V76 Preamplifier prized microphone preamp found in Decca and EMI’s custom Abbey Road desks
UA Oxide Tape Recorder provides UA’s revolutionary tape emulation technology
UA Pure Plate Reverb delivers a shimmering, authentic plate reverb sound with a minimum of fuss
You’ll also receive the Realtime Analog Classics Plus bundle:
UA 610-B Tube Preamp and EQ
Marshall Plexi Classic Amplifier
Fairchild 670 (Legacy)
Teletronix LA-2A Classic Leveling Amplifier (Legacy)
1176SE Classic Limiting Amplifiers (Legacy)
1176 LN Classic Limiting Amplifiers (Legacy)
Pultec Pro Equalizers (Legacy)
Ampeg SVT-VR Classic Bass Amp
Precision Mix Rack Collection
UA Precision Enhancer Hz
Raw Distortion
RealVerb Pro
Universal Audio Apollo x16 Heritage Edition Tech Specs
Computer Connectivity: Thunderbolt 3
Form Factor: Rackmount
Simultaneous I/O: 18 x 20
A/D Resolution: 24-bit/192kHz
Built In DSP/FX: 6 x UAD DSP Cores
Phantom Power: No

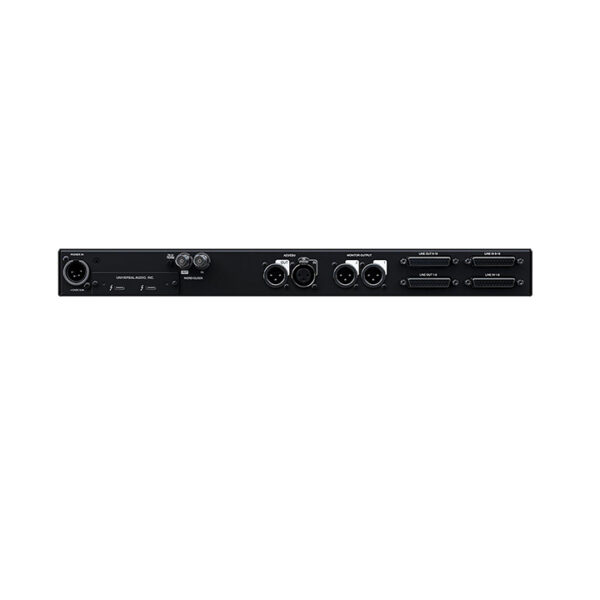

Analog Inputs: 2 x DB-25 (line)
Analog Outputs: 2 x XLR (monitor), 2 x DB-25 (line/7.1 surround)
Digital Inputs: 1 x XLR (AES/EBU)
Digital Outputs: 1 x XLR (AES/EBU)
Thunderbolt: 2 x USB-C (Thunderbolt 3)
Clock I/O: In/Out (75 ohm termination switch)
Software: HEXA Core UAD Plug-in processing, Realtime Analog Classics Plus plug-ins, 10 Heritage Edition plug-ins
OS Requirements – Mac: macOS 10.12 or later, Quad Core i7 Processor or higher
OS Requirements – PC: Windows 10 64-bit Anniversary update or later, Quad Core i7 Processor or higher, Thunderbolt 3 port required
Rack Spaces: 1U
Power Supply: 12V DC power supply (included)
Height: 1.75″
Width: 19″
Manufacturer Part Number: APX16-HE
