Yamaha Rio3224-D3
USD 11,000.00

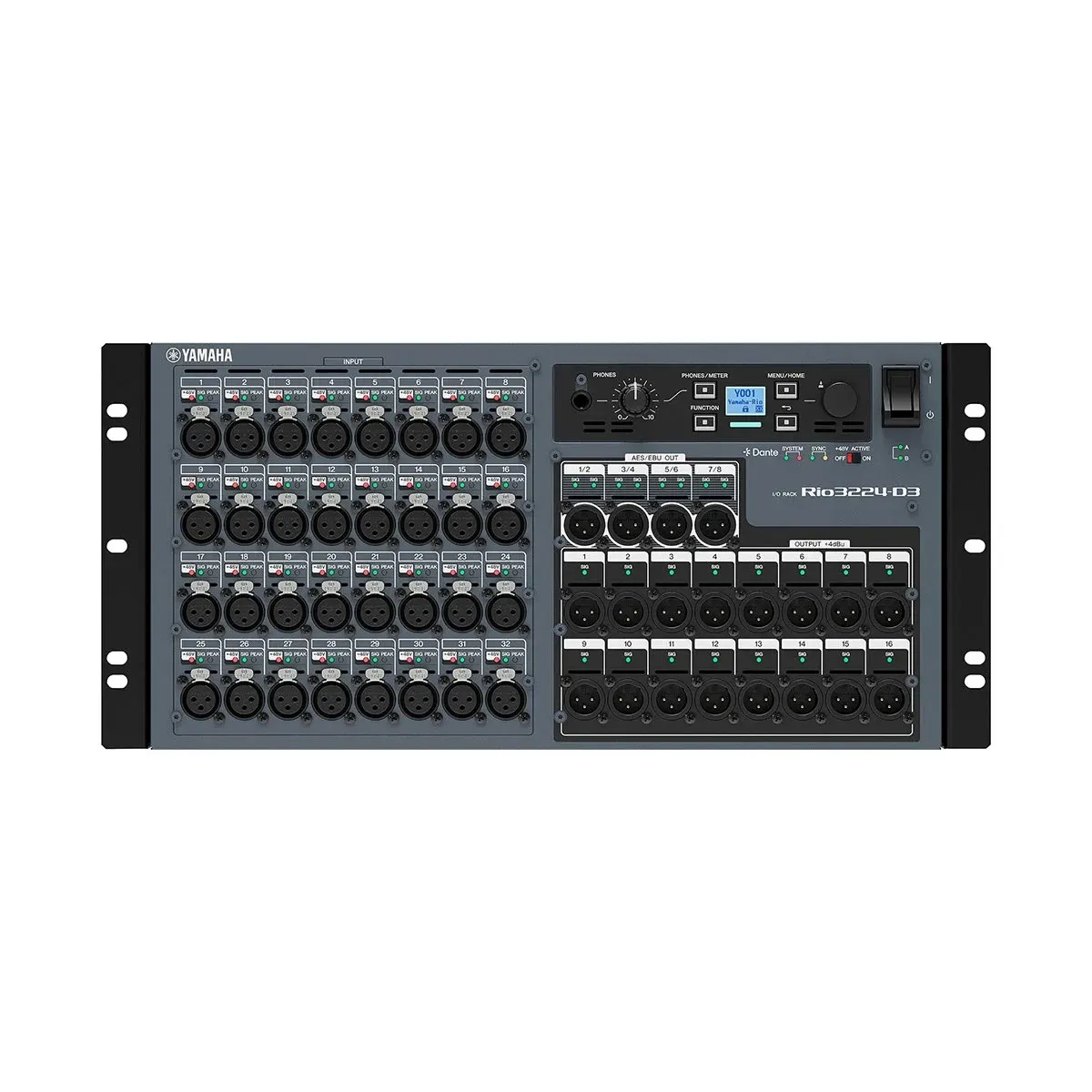

Yamaha Rio3224-D3 32-input/24-output Dante Stage Box
32-in/24-out Dante Stage Box with 32-bit AD/DA, 8 AES Outs, and Redundant Power SuppliesProduct Information
Description
Yamaha Rio3224-D3 32-input/24-output Dante Stage Box
32-in/24-out Dante Stage Box with 32-bit AD/DA, 8 AES Outs, and Redundant Power SuppliesThe Rio3224-D3 is a high-performance 32-input x 24-output I/O unit for Yamaha's CL, QL, and RIVAGE PM series consoles. This digital stage box is loaded with 32 pristine head amplifiers (with switchable 48V phantom power for condenser mics) that deliver the transparent, natural sonics Yamaha is known for. The Rio3224-D3 connects directly to a Dante digital audio network, giving you flexible system configuration at up to 96kHz. You also get four stereo AES outputs to expand your connectivity. Enjoy peace of mind, thanks to dual redundant power supplies — you can also daisy-chain connections and you'll benefit from local control of gain and other parameters. Finally, the live sound pros at Sweetwater appreciate how the Rio3224-D3's character display offers easy visual confirmation of your settings.
Yamaha Rio3224-D3 Features:
- Dante stage box
- 32 x 24 analog I/O
- 4 stereo AES outputs
- 16 head amplifiers (with switchable 48V phantom power)
- 32-bit AD/DA
- Connects directly to a Dante digital audio network
- Optimized dynamic range and noise
- Delay/Polarity/Gain function on output port
- I/O setting on LCD screen
- Headphone jack for monitoring
- Additional control-dedicated network port
- Sampling frequency for external clock: 44.1kHz, 48kHz, 88.2kHz, 96kHz
- Signal delay: <1.7ms
- Benefit from local control of gain and other parameters
- Character display offers easy visual confirmation of your settings
- Supports daisy-chain connections
- Redundant power supplies
Tech Specs
- Type:Stage Box
- Compatibility:Yamaha CL, QL, and RIVAGE PM
- Channels:32 x 24
- Inputs - Mic Preamps:32 x XLR
- Phantom Power:32
- Outputs - Main:16 x XLR
- Data I/O:3 x Ethernet (2 x Dante, 1 x Link)
- Rackmountable:Yes

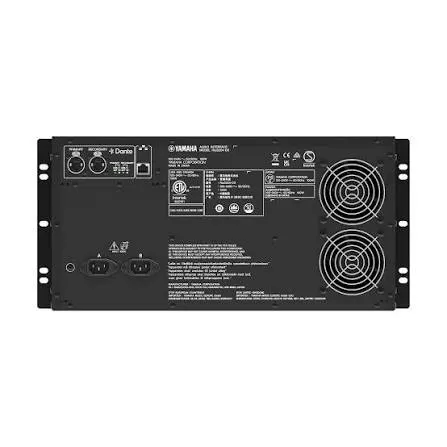

- Power Source:2 x Standard IEC (Redundant)
- Height:8.66"
- Depth:14.57"
- Width:18.9"
- Weight:29.76 lbs.
- Manufacturer Part Number:Rio3224-D3
